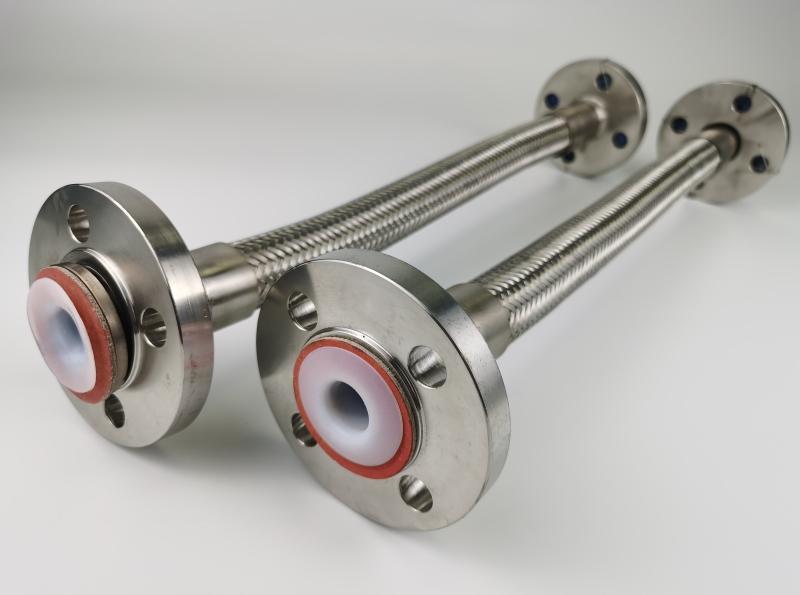

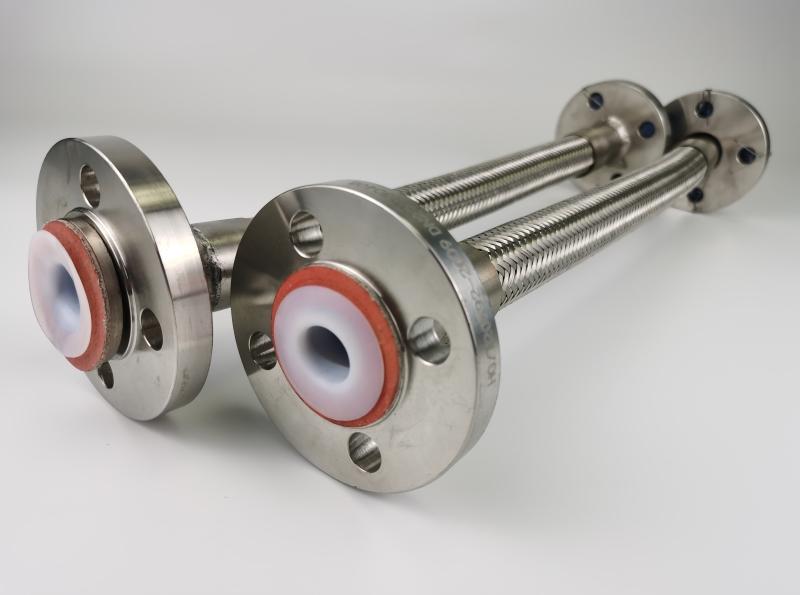

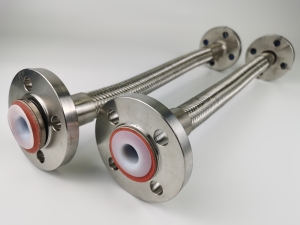

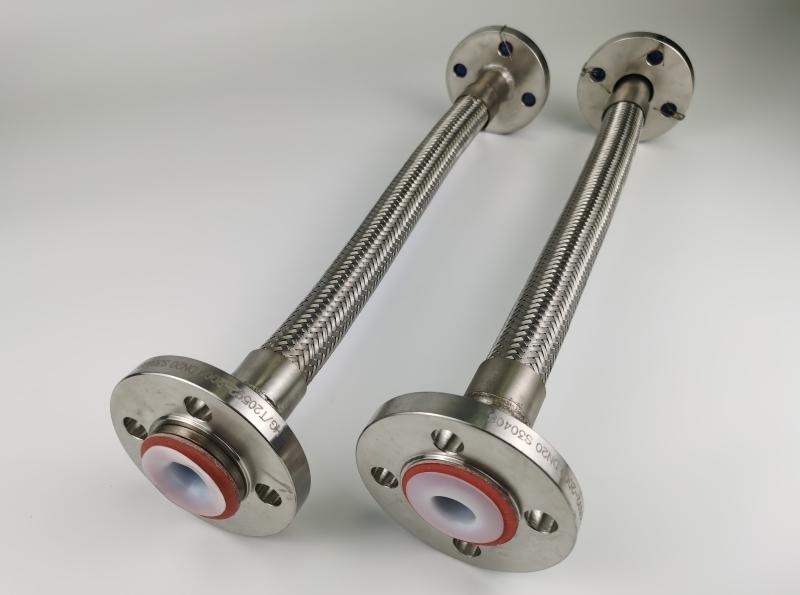

Feahosepro supply expansion joint PTFE lined corrugeted hose high pressure and corrosion resistant wire braided industrial flexible metal hose. Both ends of the flexible metal hose is connected with the connector flange, also can product customized connector.
Item no.:
FBF009Product origin:
ChinaShipping port:
ZhengZhouLead Time:

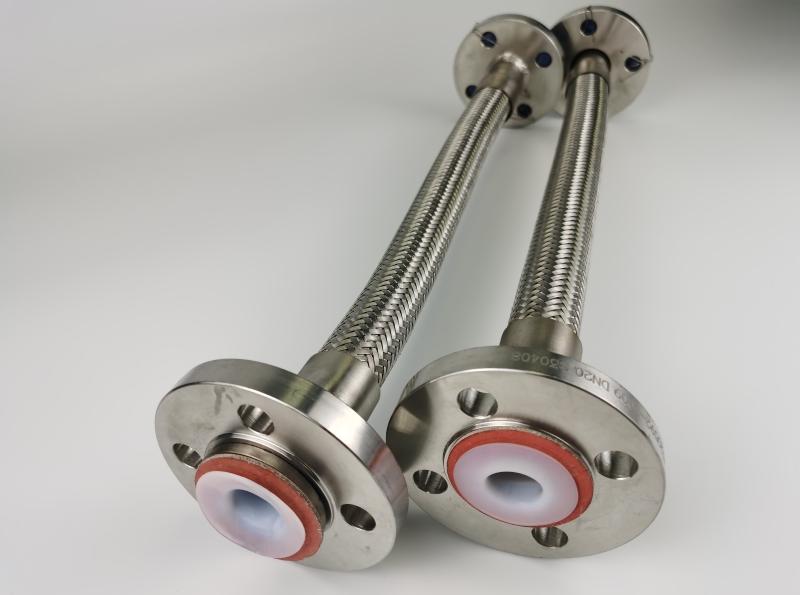

15D~30DStainless Steel Braided Flexible Metal Flange Hose inner PTFE
The stainless steel braided flexible hose flange are important connections in industrial pipelines, mainly used in the pipeline to solve the vibration, displacement, feeding, and compensate the problem of thermal expansion and contraction. Stainless steel corrugated flexible metal hose changed the previous pipe can not bend the characteristics, can withstand all kinds of acid, alkali, salt. The operating temperature ranges from -100℃ to +420℃.
Metal Corrugated Hose are generally made of 304, 316, 316L stainless steel, with good pressure resistance, high and low temperature resistance, corrosion resistance and fatigue resistance. The suitable medium of ptfe lined stainless steel corrugated hose is water, hot water, steam, gas, air, petroleum, chemicals and so on. According to the different medium can choose different grades of stainless steel corrugated hose.
Construction of Flexible Metal Hose Assemblies:

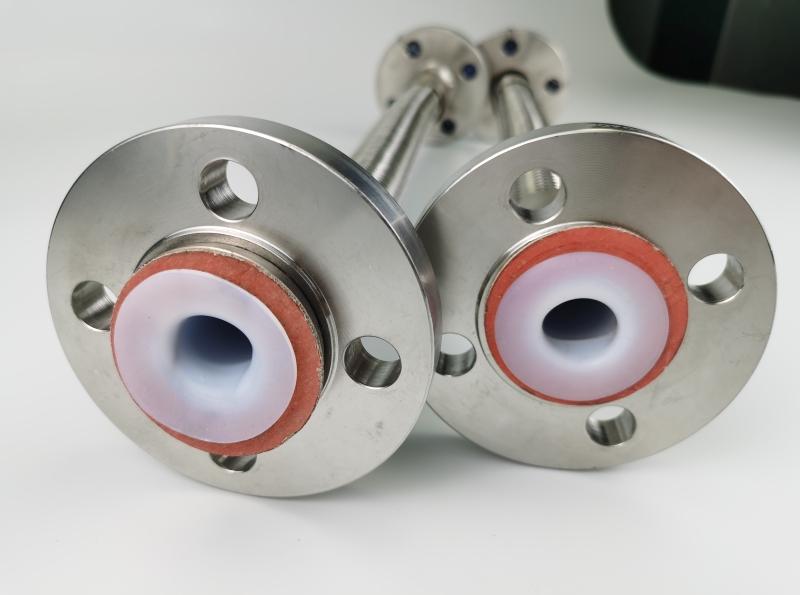

Joint: Flange
Flange material is generally: carbon steel, cast steel, stainless steel.
Both ends of connectors are movable flange connection and fixed flange connection

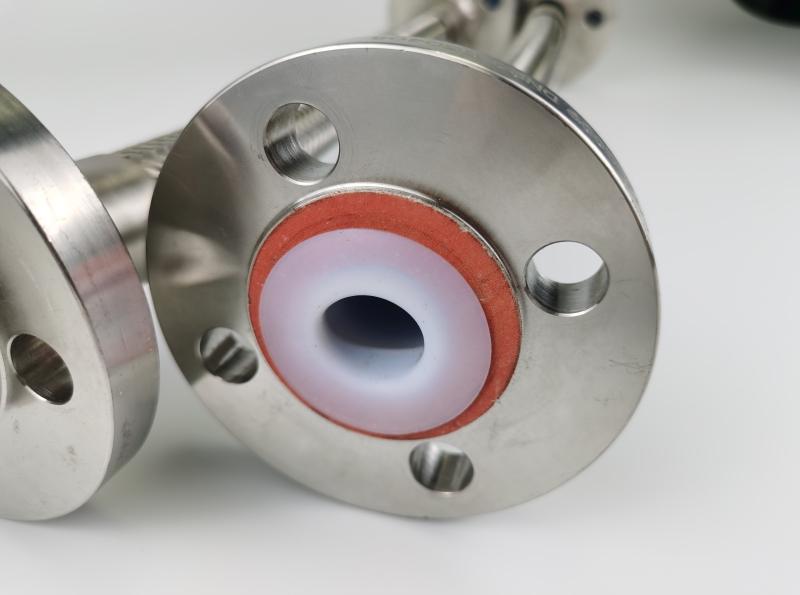

Inner Core: PTFE Corrugated Tube
Outer Core: Braided Stainless Steel Layers
Braided Flexible Metal Hose with single or double braided layers.
The material of the layers are generally the same as that of the corrugated bellows, included 304, 321 and 316L stainless steel.
The braided layers plays the role of strengthening and shielding.
PTFE hose features
Corrosion resistance: can withstand all strong acids(including aqua regia), strong oxidants, reductant and a variety of organic solvents, in addition to molten alkali metals, fluorinated media and above 300℃ NaOH.
Insulation: not affected by the environment and frequency, volume resistance up to 1018Ω/㎝, small medium loss and high voltage.
Temperature resistance: little effect on different temperature, has a wide range of temperature from -190~+260℃.
Product features:
1.The hose body is thin-walled stainless steel pipe body hydraulic, with strong flexibility, scalability, bending and ability to strengthen the protection of woven net sleeve, so that it has a higher bearing capacity.
2.Suitable for all kinds of complex, bad indoor and outdoor environment.
3.The product is not only suitable for supporting with rotary joint, but also widely used in a variety of fluid medium conveying soft connection.
Feahosepro's industrial flexible metal hose maintain the high quality of standard products, delivery on-time and non-standard custom long-term steady supply reliable qualified and stable supplier.
All proesses Certificated by ISO9001, all products 100% qualified before shipping.
Installation:
Flexible Metal Hose can be installed horizontally, vertically or diagonally, ideally vertically, and should be avoided near wheels, with a baffle if necessary.

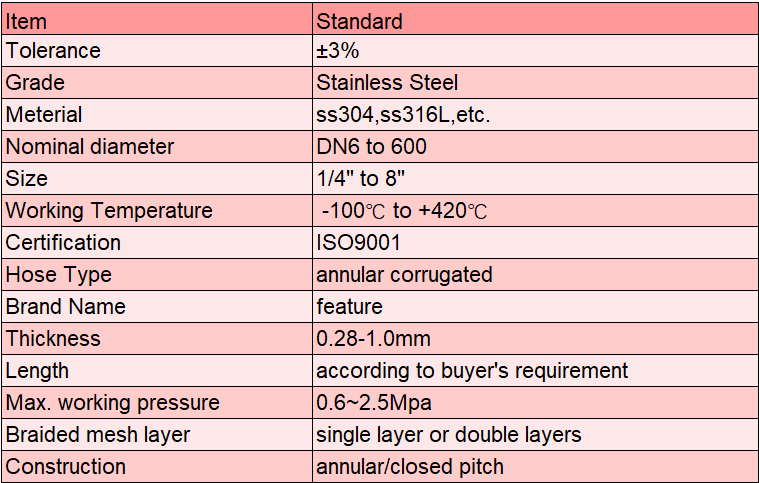

Product Standards:

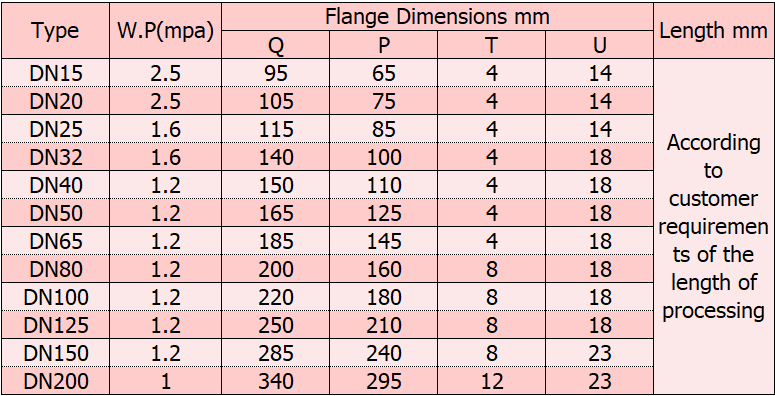

Flange Flexible Metal Hose Performance Parameters As Below:
Custom Service:
1.Costomized with specific design, such as I.D, O.D, Lenth, Connects, Material, Printed Tag, Package, etc.
2.OEM/ODM service can provide what you wanted and custom design printed to your specification.
3.Purchas a free sample order for test quality before place on full order.
